Learn everything you need to know about the different types of dynamometers, how they work and why they’re critical to your business.

What is a dynamometer?

Dynamometers, also called load cells, are devices used for measuring force and tension when a load is pulled on both sides. Originally developed by W.C. Dillon to measure the tension on telephone wires, dynamometers are now integral parts of force measurement in industries like stage rigging, cell towers, construction, aviation and more.

How do dynamometers work?

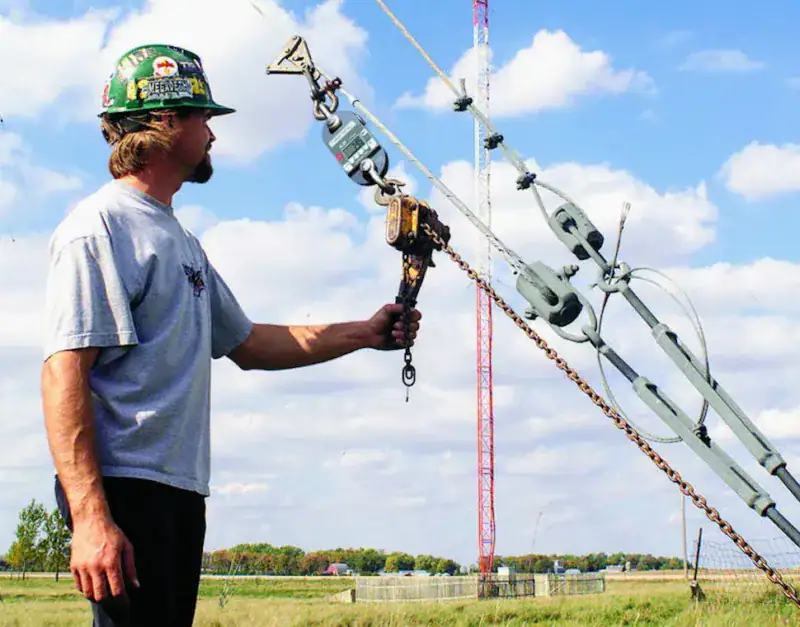

Dynamometers measure the tension force exerted between two attached shackles. The analog, or mechanical, dynamometer is operated by placing the unit on a line and adjusting the “zero” position to negate the existing tension. Then, as force is applied to the dynamometer bar, the internal gauge movement is adjusted to provide an accurate measurement. Digital dynamometers work similarly, but with no moving parts. Instead, they utilize strain gauge technology.


Are you ready to transform your business with reliable force measurement? Our experienced team can help you get started.

What’s the difference between a mechanical and a digital dynamometer?

Mechanical dynamometers (also known as analog dynamometers) have internal moving parts to calculate the applied force. Mechanical dynamometers were developed by Dillon in 1937 and do not require batteries or a power source to operate.

Digital dynamometers (also referred to as load cells) have no moving parts, utilize strain gauge technology to calculate the applied force, and require batteries to operate. Digital dynamometers have more features, are more accurate, and offer higher capacities.

Why is accurate force measurement important?

Precise tension measurement is critical for both equipment and personnel safety. When a cable is strung too tight or too loose, it is in danger of snapping, especially in icy or snowy conditions. Accurate force measurement reduces the risk of snapping, and digital dynamometers can even be set to sound an alarm if the cable approaches breaking point.

Different Types of Dillon Dynamometers

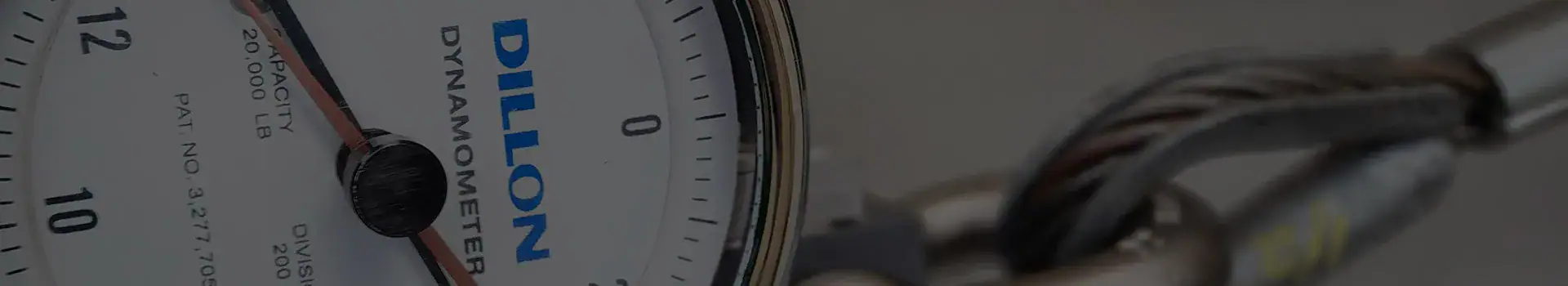

AP Mechanical Dynamometers

The original dynamometer developed by W.C. Dillon in 1937, this analog device has a capacity of up to 50,000 pounds and is accurate within a 0.5% margin of error. These units are incredibly durable (some customers have used the same AP unit for decades), can be used accurately even underwater, and are especially helpful in explosive environments.

EDjunior Digital Dynamometer

The EDjunior features the same resilient engineering as the EDXtreme, but is better-suited for low capacity jobs (up to 25,000 pounds). The EDjunior is accurate within 0.2% and features a simple, Spartan design that can be relied upon for precise measurements time and time again.

EDXtreme Digital Dynamometer

The EDXtreme is the most accurate, most reliable dynamometer option on the market. With a capacity of up to 550,000 pounds and an accuracy within 0.1%, the EDXtreme is highly configurable and can sync with a handheld remote display to provide your team maximum oversight and safety.

EDXtreme Blue Dynamometer

EDXtreme Blue Dynamometer

The EDXtreme Blue Dynamometer combines high accuracy with a rugged construction to ensure durability. Its highly refined design draws on the inherent strengths of premium grade materials to achieve a 5:1 minimum safety factor and an IP68 rating. Data export is streamlined through the free Dillon EDX mobile application, compatible with Android and Apple devices.

Which dynamometer is right for me?

Depending on your load capacity, the physical environments you’re working in and other factors, one particular dynamometer type may be best for your project. Answer a few quick questions and we’ll recommend a model.


Help me find the right dynamometer

Answer a few short questions and we’ll tell you the best model for your needs.

Browse and compare dynamometers

Find specs and overviews of the different types of dynamometers.

I know the model or part number I need

Search by model number or part number.
Example: AWT05-506312 or EDX-10T

Let’s Talk

Ready to get started? Our experienced team is happy to help you find the right dynamometer or answer any questions.
