YOUR #1 SOURCE FOR DILLON DYNAMOMETERS

Over 80 years of force measurement expertise

Help me find the right dynamometer

Answer a few short questions and we’ll tell you the best model for your needs.

Browse and compare dynamometers

Find specs and overviews of the three different types of Dillon dynamometers.

I know the model or part number I need

Search by model or part number.
Example: AWT05-506312 or EDX-10T

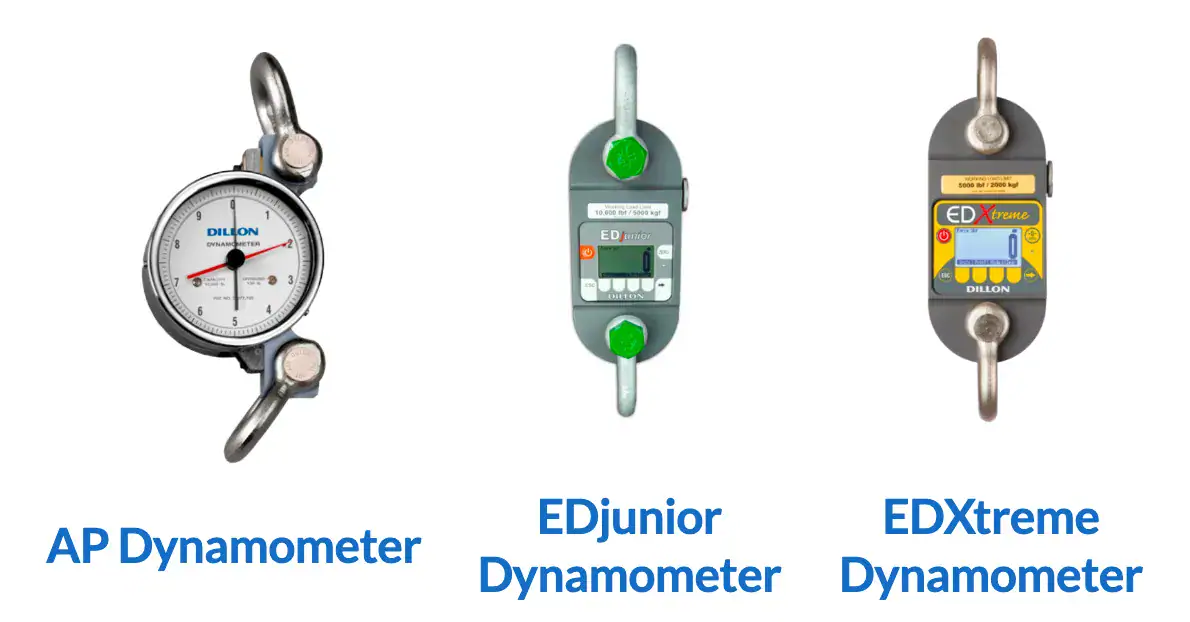

Dillon dynamometers at a glance

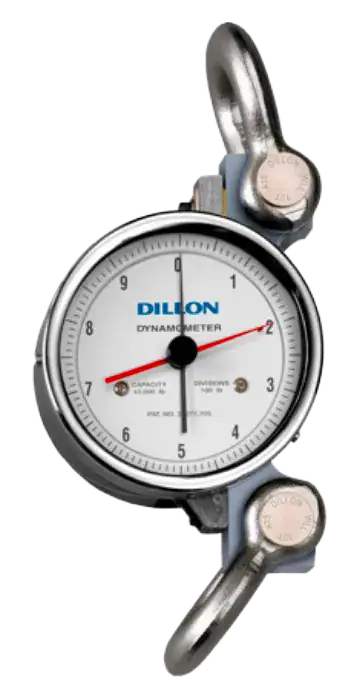

AP Dynamometer

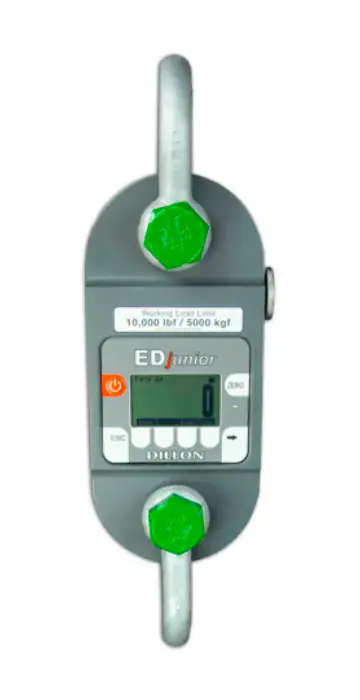

EDjunior Dynamometer

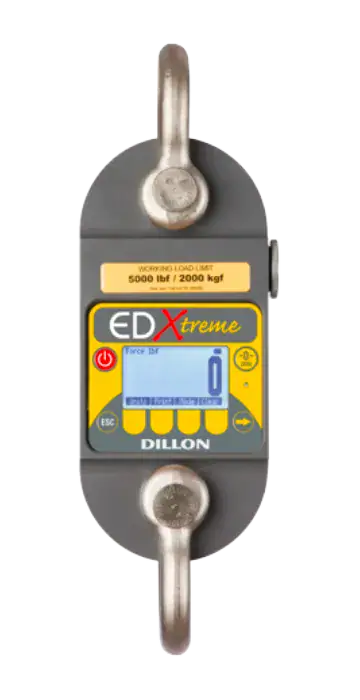

EDXtreme Dynamometer

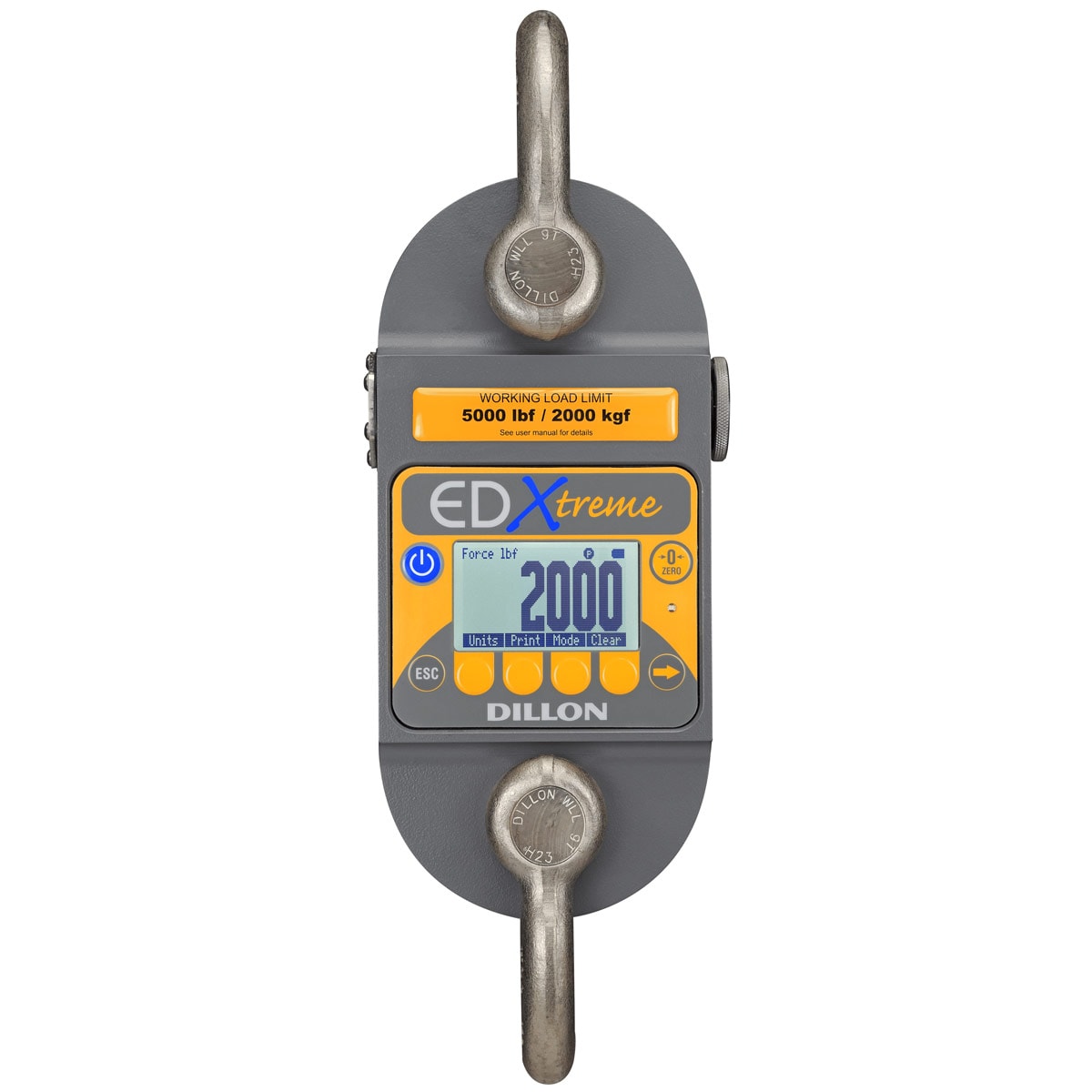

EDXtreme Blue Dynamometer
Mechanical or DigitalMechanicalDigitalDigitalDigital
Capacity500 lb to 50,000 lb2,500 lb to 25,000 lb2,500 lb to 550,000 lb2,500 lb to 25,000 lb
Unit of Measurelbf or kgflbf, kgf & Newtonslbf, kgf & Newtonslbf, kgf & Newtons
ResolutionRefer to spec sheet1/1000 resolutionLow / med / high (5000 resolutions)Low / med / high (5000 resolutions)
Memory StorageN/AN/AUp to 255 logsUp to 255 logs
Data ExportN/AN/ARS232Bluetooth to Dillon EDX mobile app
Operating Range-50º F to 140º F-4° F to 158° F (-20° C to 70° C)-4° F to 158° F (-20° C to 70° C)-4° F to 158° F (-20° C to 70° C)
RecalibrationEvery 12 monthsEvery 12 monthsEvery 12 monthsEvery 12 months
Proof Load150%150%150%150%
ModesN/ALive & Peak display modesSeven display modes including live & peakSeven display modes including live & peak
Capture RateN/A10Hz10Hz, 100Hz & 1000Hz10Hz, 100Hz & 1000Hz
Accuracy+/- 0.5% of instrument capacity± 0.2% of instrument capacity± 0.1% of instrument capacity± 0.1% of instrument capacity
Display5″ and 10″ dial faceDot-graphic LCD display supports full text and 1” high digitsDot-graphic LCD display supports full text and 1” high digitsDot-graphic LCD display supports full text and 1” high digits
EnvironmentalSuitable for continuous outdoor useSuitable for continuous outdoor useSuitable for continuous outdoor useIP68
Suitable for continuous outdoor use
ApprovalsCE / ASME B30.26 (up to 20,000 lbs.)CECECE
REQUEST QUOTE

LEARN MORE
REQUEST QUOTE

LEARN MORE
REQUEST QUOTE

LEARN MORE
REQUEST QUOTE

LEARN MORE

Dillon dynamometers at a glance

Mechanical or DigitalCapacityUnit of MeasureResolutionMemory StorageData ExportOperating RangeRecalibrationProof LoadModesCapture RateAccuracyDisplayEnvironmentalApprovals
AP
Dynamometer
Mechanical500 lb to 50,000 lblbf or kgfRefer to spec sheetN/AN/A-50º F to 140º FEvery 12 months150%N/AN/A+/- 0.5% of instrument capacity5″ and 10″ dial faceSuitable for continuous outdoor useCE / ASME B30.26 (up to 20,000 lbs.)REQUEST QUOTE
LEARN MORE
EDjunior
Dynamometer
Digital2,500 lb to 25,000 lblbf, kgf & Newtons1/1000 resolutionN/AN/A-4° F to 158° F (-20° C to 70° C)Every 12 months150%Live & Peak display modes10Hz± 0.2% of instrument capacityDot-graphic LCD display supports full text and 1” high digitsSuitable for continuous outdoor useCEREQUEST QUOTE
LEARN MORE
EDXtreme
Dynamometer
Digital2,500 lb to 550,000 lblbf, kgf & NewtonsLow / med / high (5000 resolutions)Up to 255 logsRS232-4° F to 158° F (-20° C to 70° C)Every 12 months150%Seven display modes including live & peak10Hz, 100Hz & 1000Hz± 0.1% of instrument capacityDot-graphic LCD display supports full text and 1” high digitsSuitable for continuous outdoor useCEREQUEST QUOTE
LEARN MORE
EDXtreme
Blue Dynamometer
Digital2,500 lb to 25,000 lblbf, kgf & NewtonsLow / med / high (5000 resolutions)Up to 255 logsBluetooth to Dillon EDX mobile app-4° F to 158° F (-20° C to 70° C)Every 12 months150%Seven display modes including live & peak10Hz, 100Hz & 1000Hz± 0.1% of instrument capacityDot-graphic LCD display supports full text and 1” high digitsIP68, Suitable for continuous outdoor useCEREQUEST QUOTE
LEARN MORE

Dynamometers 101

Dynamometers are instruments that measure the tension force in a line or suspended weight. Find out how they work, why they’re important and which type is best for your business.

A FEW OF OUR SATISFIED CUSTOMERS

DILLON/QUALITY PLUS BY THE NUMBERS

0
years of the Dillon family legacy
0
dynamometers sold
(and counting)
0
countries sold to

What our customers are saying

“We have been doing business with Dillon/Quality Plus, Inc., for several years.  They have provided quality calibration service for us on hundreds of pieces of equipment over the years.  We have found them to be excellent to work with, conscientious, responsive and accurate.

This year we have had an unprecedented increase in our volume.  Dillon/Quality Plus has continued to provide a good turnaround time despite the number of instruments we have sent for calibration.  Having a dependable and accurate vendor to work with is critical to our success.”

Jan Diaz, Pacific Gas & Electric Company

“I have been a customer of Dillon/Quality Plus for ten years and their service is excellent. The prices and turnaround times have always been highly competitive. I highly recommend Dillon/Quality Plus products to anyone needing a quality dynamometer that is built to last.”

Caroline Allbee , STB Electrical Test Equipment, Inc.

“I greatly enjoy our business relationship with Dillon/Quality Plus! They’re a wonderful company to work with. The customer service team is always pleasant and communicative. It’s very refreshing to have a vendor who cares about customers and who provides top notch service. Keep up the good work!”

Joni Schenk, Nikkiso Cryo, Inc.

OUR EXPERTS ARE HERE TO HELP

Are you ready to transform your business with reliable force measurement? Our experienced team can help you get started.
